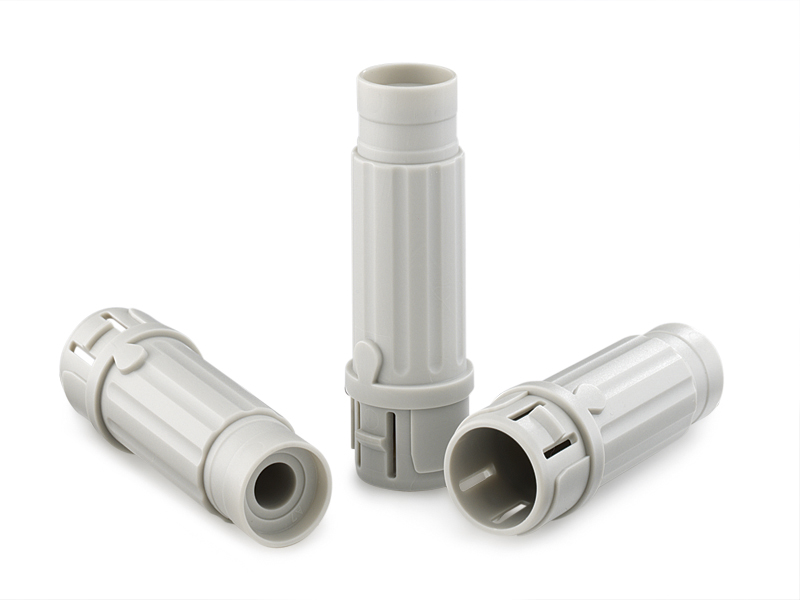

8 impression hot runner tool - To produce firing body

This tool incorporates an 8 drop Gunther hot runner system, direct fed on to each part with a valve gate. The hydraulic locking cylinders are utilised with a specific opening sequence to minimise distortion of the part. Mouldings are then ejected via pins.

Dimensions 596 x 503 x 480mm
Weight 900 Kilos
Material PP Repsol Isplen PB176
Press KM 100CX
